2023 - Charged Up

Charged Up is the game for the 2023 FIRST Robotics Competition. The game is themed around two alliances of three teams each who compete to bring energy to their community. Robots retrieve cones and cubes from substations, score them on the grid, and balance themselves on the charge station.



Our Robot

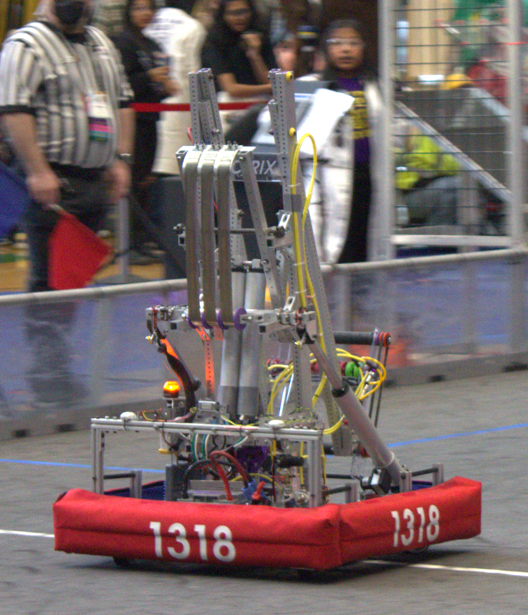

Name: Electrix

Team Captains: Amrita Singh, Alan Roy, Neha Muramalla

Record: 5 events, 74 matches, 44 wins (in official play)

  • District SunDome: Round 3 of playoffs, Team Sustainability award.

  • Glacier Peak: Round 3 of playoffs, Rank 7

  • District Auburn: Finalist, District Event Finalist, Excellence in Engineering Award

  • FIRST District Championship: Round 2 of playoffs, Innovation in Control Award

  • Galileo Division: Round 2 of playoffs, Innovation in Control Award

  • Bordie Charged (Off-Season): Round 4 of playoffs, Rank 16

  • WA girls Generation (Off-Season): Finalist, Alliance captain, Rank 5

  • More information on The Blue Alliance



The 2023 drive team

Robot Features

Capabilities Summary (Basic Features and Specifications):  ​

  • Drivetrain: SDS Mk4i Swerve modules powered by 8 Falcon motors​

  • Two independently controllable main arm segments ​

    • Each segment powered by two linear actuators​

    • Constant force springs for partial gravity compensation​

    • String encoder feedback​

    • Forward and Inverse Kinematics​

    • Can reach all levels of the grid​

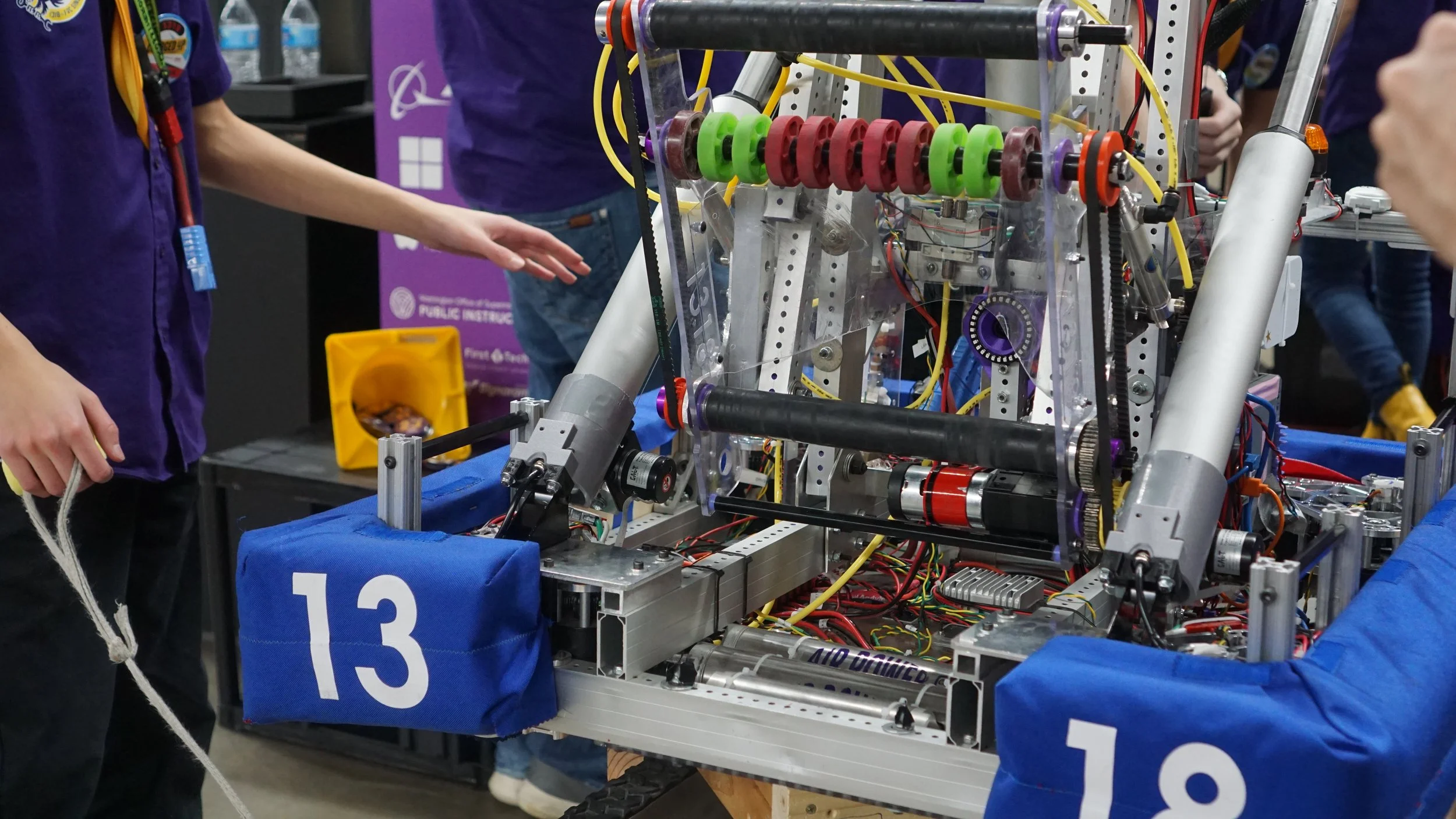

  • Three-roller end effector​

    • Can pick up both cubes and cones from floor or loading station​

    • Rollers powered by a 775 pro motor​

    • Pneumatic cylinders for angle control​

  • Additional sensors​

    • IMU ​

    • Camera​

  • Auto modes ​

    • Multiple cube and cone auto scoring modes​

    • Auto balancing on charge station​
