2025 - Reefscape

Reefscape is the game for the 2025 FIRST Robotics Competition. Two alliances of three robots each work to score PVC pipes (called Coral) and playground balls (called Algae) into goals. At the end of the match, robots move to a truss structure called the Barge and climb metal Cages to earn additional points.

This year’s game was based on a winning game design submission from our team called Operation Outpost during the COVID-19 Pandemic.

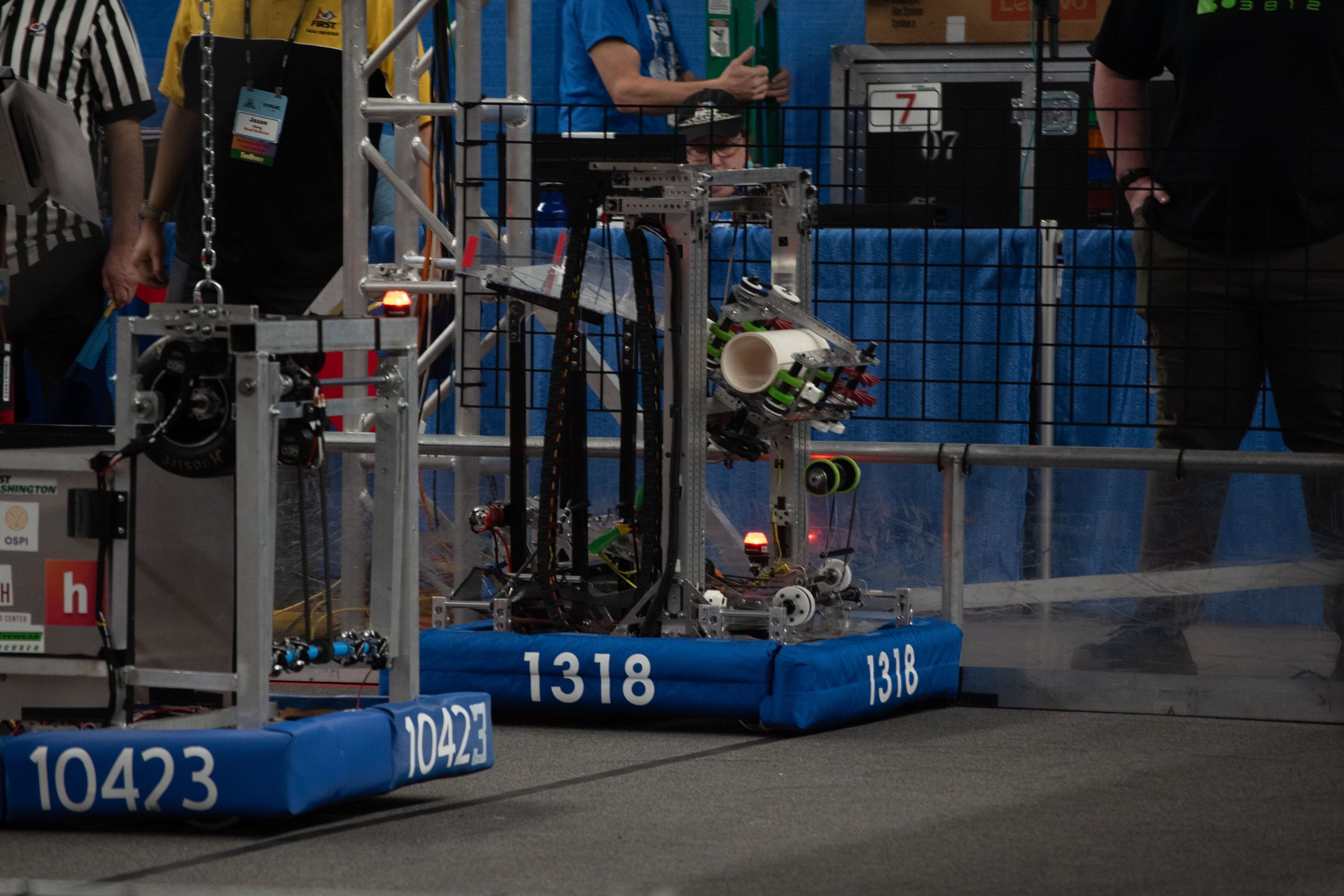

Our Robot

Name: Riptide

Team Captains: Rosemary Shimao, Makoto Sasaki, Kristina Khokhlova

Record: 5 events, 78 matches, 53 wins (in official play)

  • Glacier Peak: Semifinalists, Dean’s List Semifinalist (Kristina)

  • Yakima SunDome: Autonomous Award, Finalists

  • Auburn: Creativity Award, Semifinalists

  • PNW District Champ: Quarterfinalists

  • World Championships: Milstein Division Finalists

  • Bordie in Show (Off-Season): Semifinalists

  • More information on The Blue Alliance

Robot Features

  • Continuous, belt-driven 2-stage elevator (passthrough) capable of L1-L4

  • Redline motor with star rollers for coral realignment

    • beam-break sensors for coral position detection

    • outtakes coral along center axis accounting for slight deviations in intaking angle

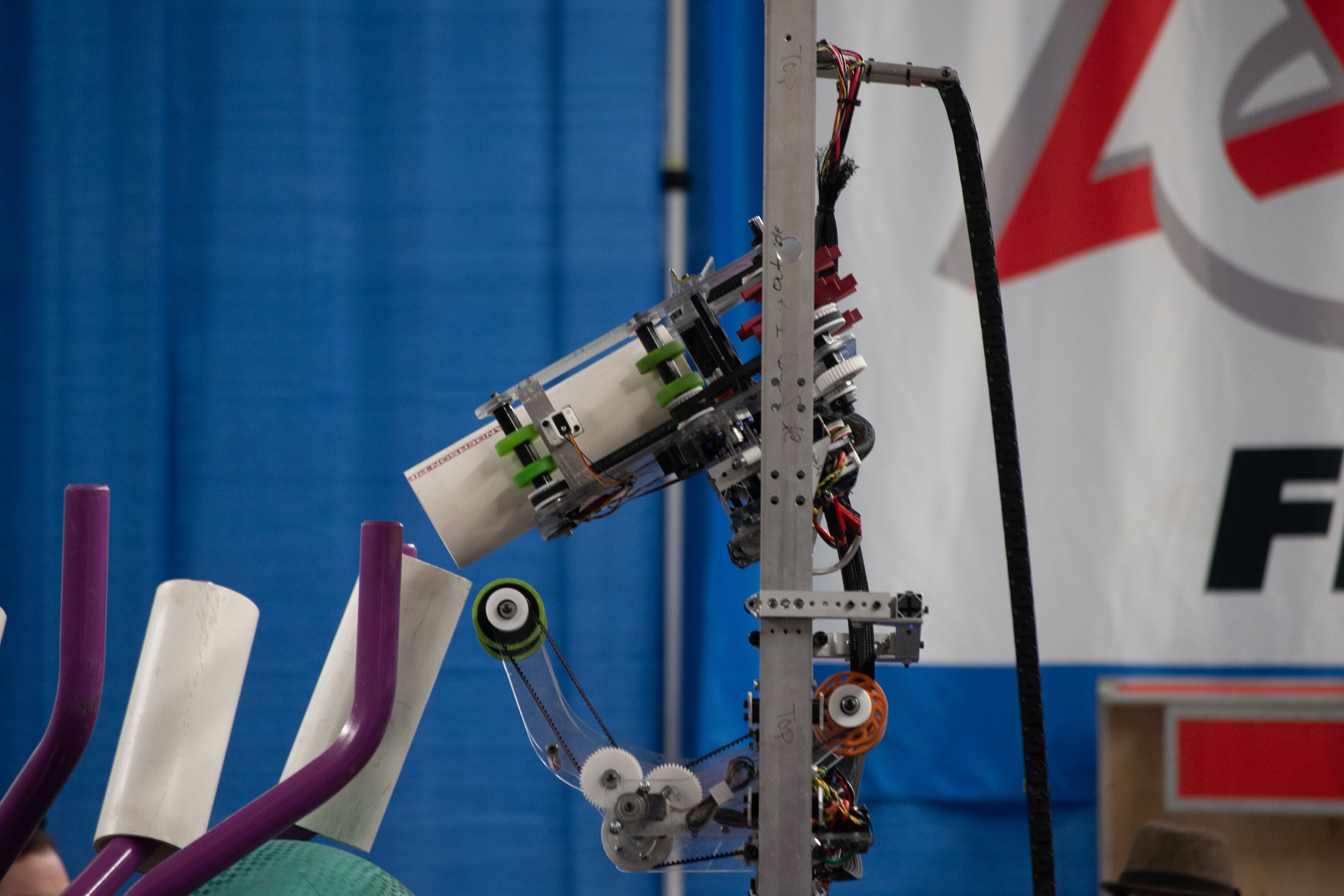

  • “Owl Head” coral outtake - curved rack and pinion to precisely control angled yaw axis movement

    • Fine-tuned swivel reduces drivetrain adjustment necessary for scoring, easy to score at angle

  • Algae intake - pinch reef algae and relax tension to score in net

  • “Alien” funnel - passive mechanism

    • doesn’t require precise placement for scoring

    • funnel splits open to make space for climber

  • Deep cage climber uses lever arm+ winch
